SEGMA S6700H SPEED CONTROLLER S 6700 H S 6700H S-6700H - TOP QUALITY

SEGMA S6700H SPEED CONTROLLER S 6700 H S 6700H SEGMA S-6700-H - TOP QUALITY

Brand = SEGMA
Model = S700H
Description = Speed Controller
Quality = TOP Quality

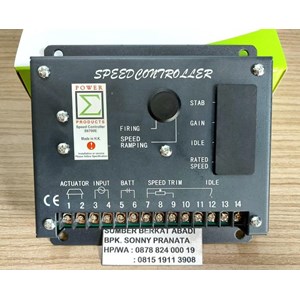

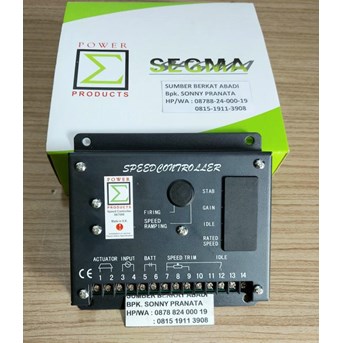

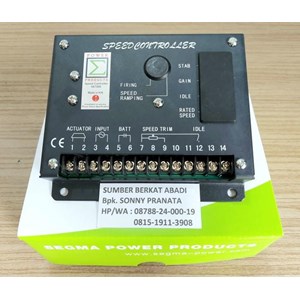

Product description: The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic character

The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient over voltage or Actuator fault happens, or Speed input breaks.

Power reverse connection protection
Actuator default protection
Speed signal Lose protection
Over-speed & External high Level input Alarm

Environmental
Ambient operating temperature range = - 40 ~ 85 °C
Relative humidity = 95%

Input Power
Supply = 24VDC
Actuator current range = 2.5-10A(continuous)
Speed sensor signal = 1-20v

Characteristics
Speed fine adjustment range = ± 100% r / min
Frequency fluctuation = ± 0.25%
Steady speed droop = 0~3% (variable)
Temperature drift = ± 1% (maximum)

Speed Control
